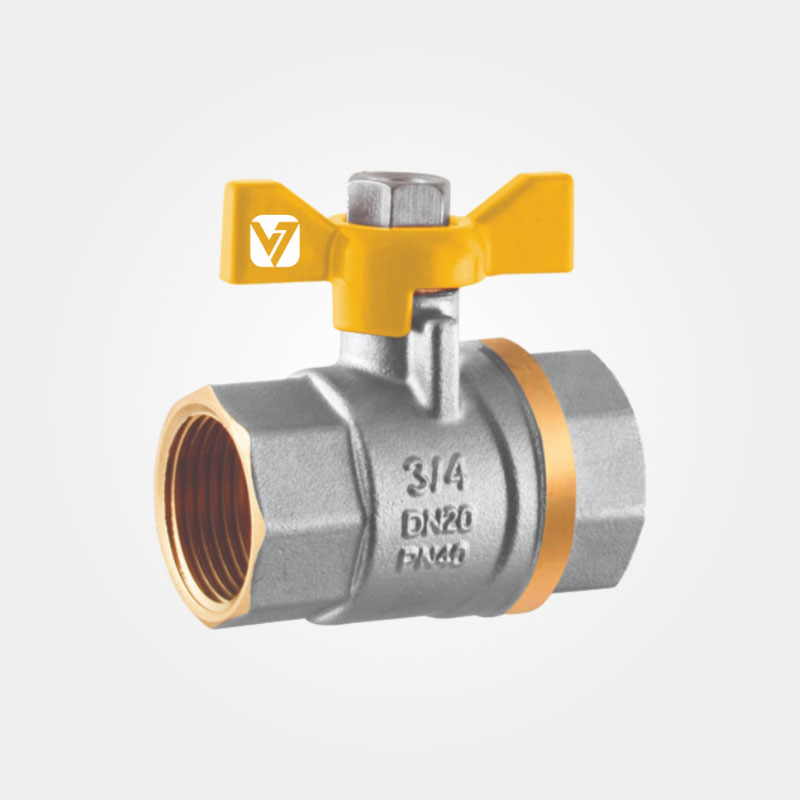

Forged Brass Butterfly Valve(F/F)


Forged Brass Butterfly Valve(F/F)

Code Size Weight Qty/Cn
BTFF-01 1/2" 153gm 144
BTFF-02 3/4" 235gm 80
Specific Description of Ball Valve in MM
DN 15 20
Size 1/2" 3/4"
D 14 19
L 51 61
L1 12.5 13.5
H 39 42
E 52 52
W 24 30
  • Item Forged Brass Butterfly Valve(F/F)
  • Material Brass
  • Ball Material Chrome Plated Brass
  • Stem Material Brass
  • Valve Basic Body Materials Brass
  • Handle Material MS (Powered Coated) & SS
  • Handle Type Lever
  • Surface Treatment Nickel Plating
  • Seat Material PTFE
  • Body Seal Material PTFE
  • Connection Type Screwed BSP Parallel
  • Application Oil & Petroleum, Water, Gas
  • Max. Temp -20C to + 120C
  • Working Pressure 40bar/435 psi
  • Stem Type Blowout Proof
  • Standards En 13828, DIN16962, ISO 15874
